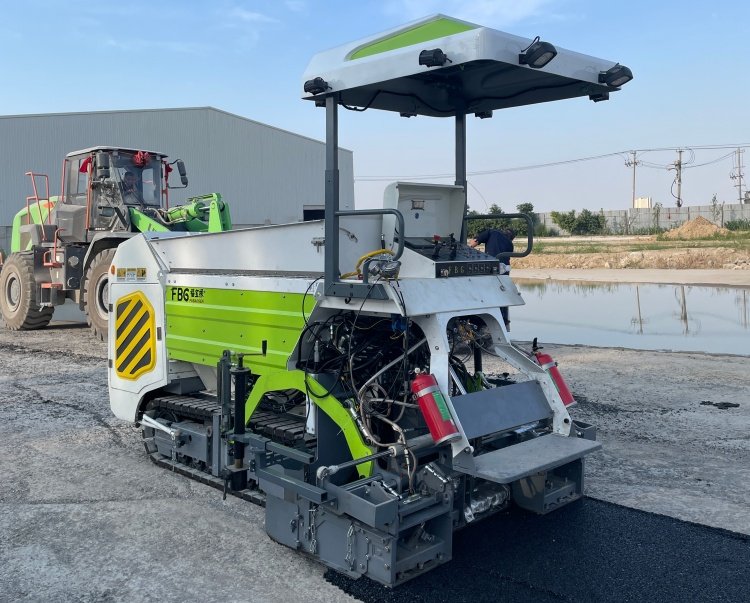

The MINI asphalt paver is a dedicated compact paving machine for small‑scale road projects. Featuring a compact body and flexible steering, it is suitable for narrow‑space construction scenarios including community roads, country lanes, alley repairs and small municipal works. Powered by a Kubota China‑IV diesel engine, it offers adjustable paving width from 0.8 to 2.0 meters and paving thickness from 30 to 100 millimeters. A steel track travel structure is optional. With convenient transportation and simple operation, it is an efficient piece of equipment for small‑area asphalt paving construction.
| Product Model | FBGAP-1500-C | |
| Dimensions (L × W × H) | mm | 3500*1100*1580 |
| Engine Brand | Kubota | |
| Engine Model | D1703-M-DI-E4B-CBH1T | |
| Engine Power | kw | 17.1 |
| Paving Width | mm | 800-1500 |
| Maximum Paving Width | mm | 1500 |
| Paving Speed | m/min | 1-5 |
| Transit Speed | Km/h | 1-13 |
| Heating Function | Gas-Heated Screed | |
| Fuel Tank Capacity | L | 49L |
| Hydraulic Oil Tank Capacity | L | 102L |
| Travel Mode | Crawler Type | |
| Hopper Capacity | m³ | 1.2 |
